The EcoFlow PowerOcean system
July 12, 2026
The installation started at 8am and was complete and provisioned by 4pm.

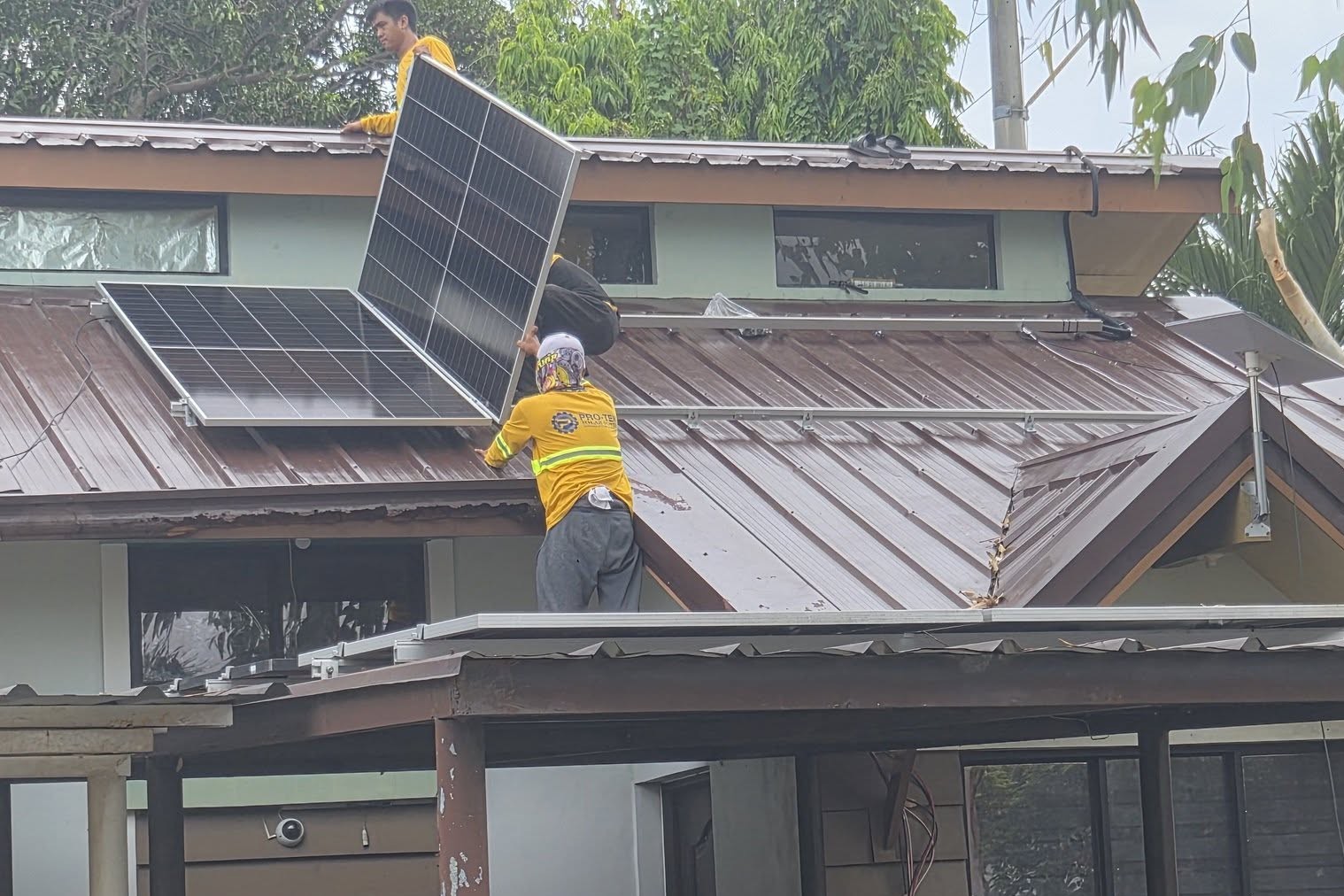

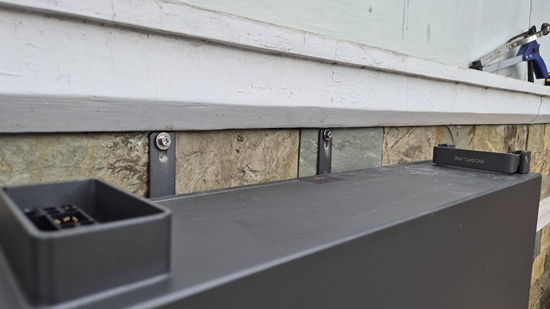

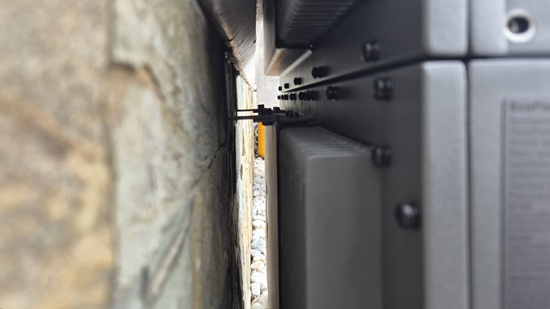

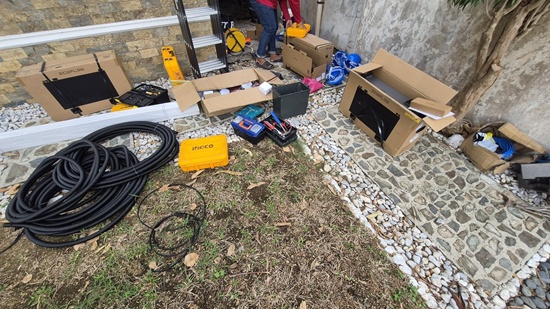

Here are some photos from the activity.

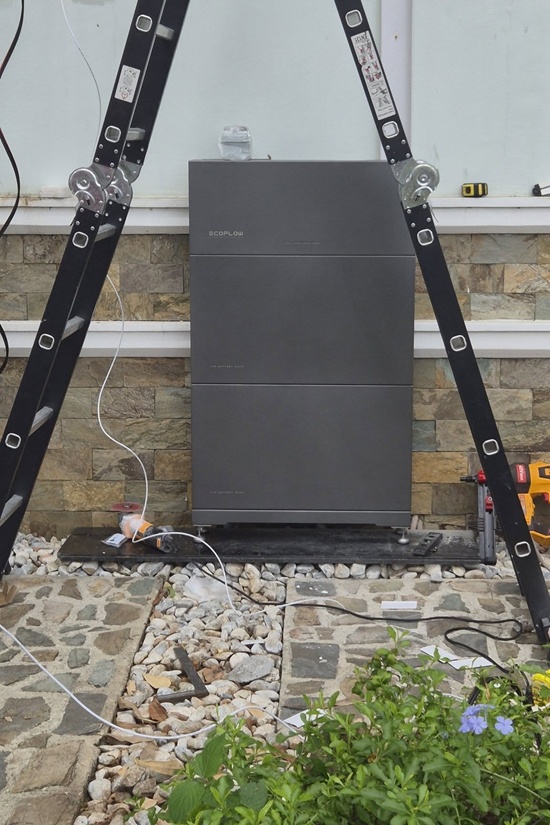

Thanks to my good friend who gave me a granite piece more than sufficient in size and thickness for the base of the PowerOcean to rest on.

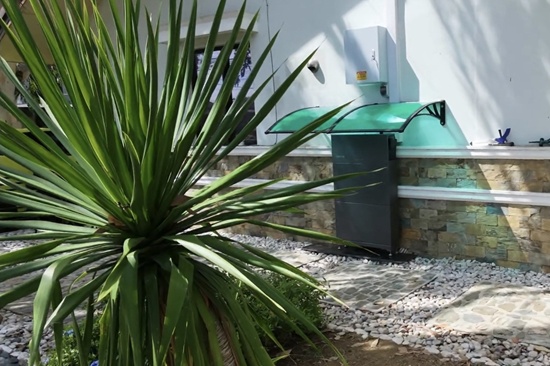

Aside from having the roof repainted, I needed a canopy as recommended by EcoFlow. While the PowerOcean is IP65 rated and will survive torture, I still want to give it some protection.
The NEMA-4 combiner lockable box contains the DC and AC protection, the Acrel energy monitor, and an automatic transfer switch (ATS) connected to the PowerOcean backup port.
So there it is, a very clean install and now running in self-powered mode.
What were installed?

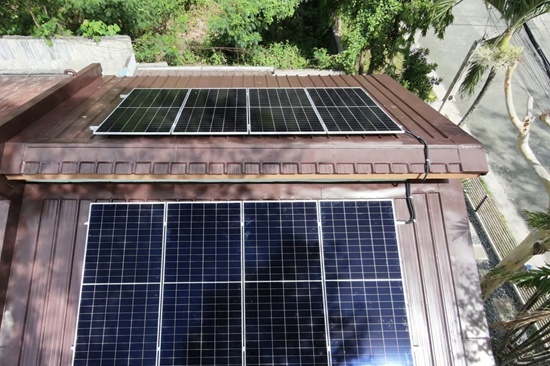

| Solar Panels, AIKO-G650-MCH72Mw | 8 pcs | 5.2kWp |
| EcoFlow PowerOcean Inverter | 1 unit | 6kW |
| EcoFlow PowerOcean 5kWh batteries | 2 units | 10kWh |
| Emergency Stop (EPO) | 1 unit | |
| NEMA-4 combiner box | 1 unit | |
| Acrel energy monitor | 1 unit | |
| Taxnele ATS | 1 unit | |
| AC and DC Protection devices | 1 lot | |
| Other materials | 1 lot |
The validation of functionality and compatibility is continued on the next page.
